WEIGHING & FILLING
AUTOMATION SPECIALIST
affaff2

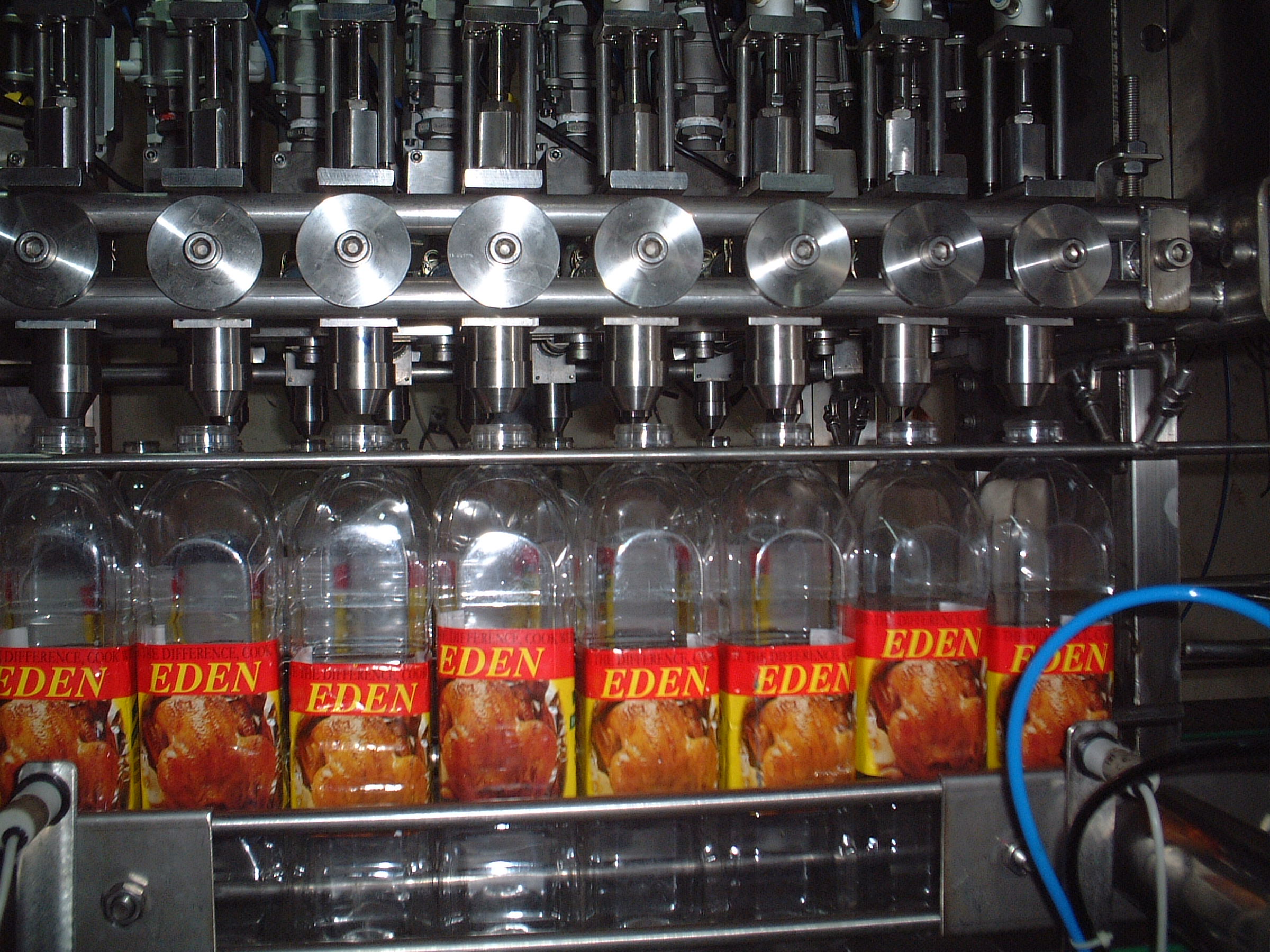

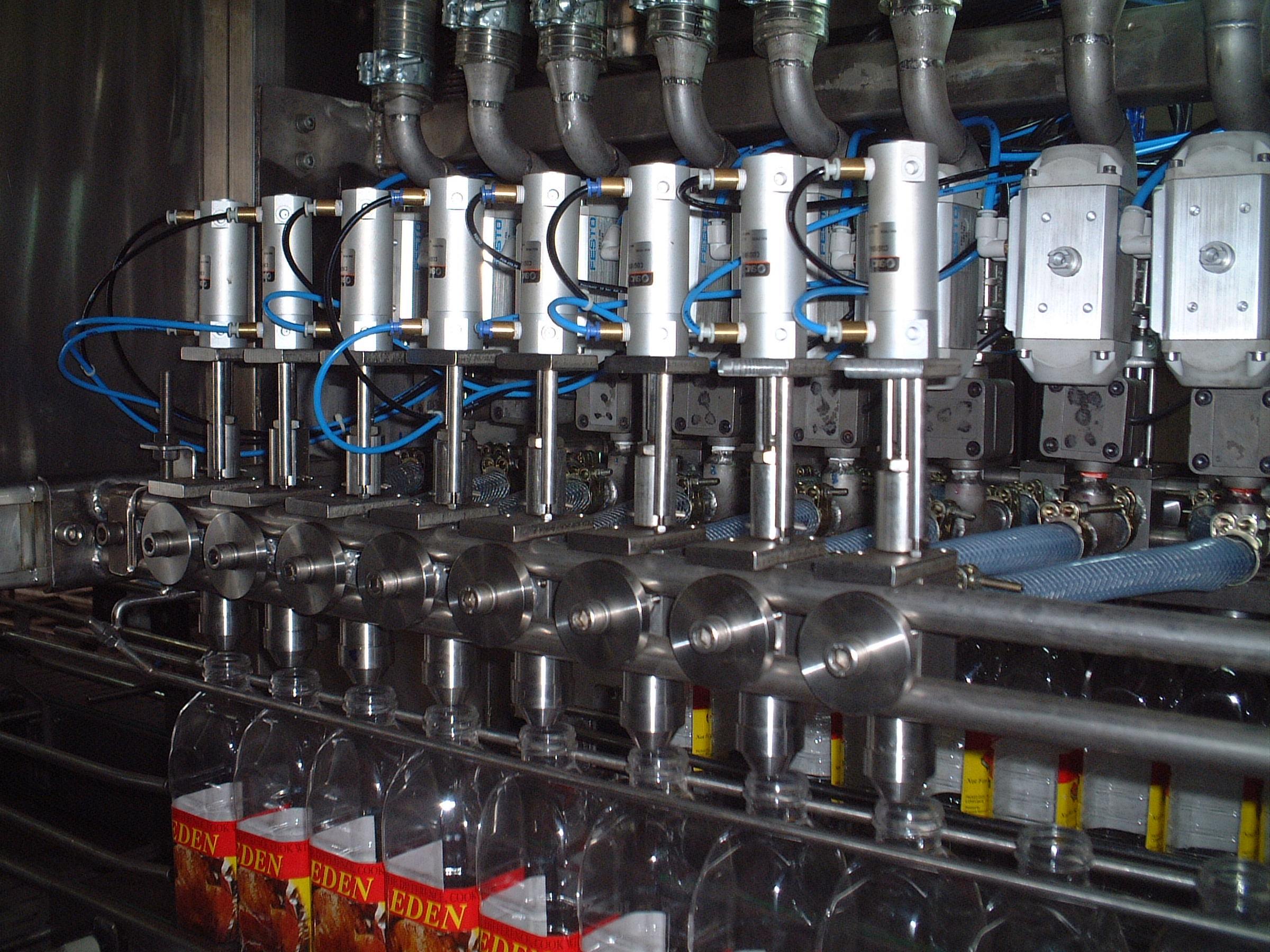

Offering the very best in fully automatic filling machine from empty carton line up to filling and transfer to sealing
Carton filling machine offer a wide range of fill weight
Designed to handle from low to high viscosity liquid such shortening, margarine, etc.
Different carton or container shapes and sizes can be accepted without changing of parts and minimum time for set up
High productivity
Accuracy
Free from man handling
The machine is suitable for pharmaceutical, food and beverages, cosmetics, toiletries application
Stainless steel designed for easy clean up, maintenance and repairs

Electronic weigh filling
User-friendly touch panel
On the run adjustment
Parameter memorized
Sanitary type for food industry
Finished Stainless Steel construction and part contact with liquid
Jacketing Nozzles
CIP
Drip Tray -Automatic drip tray to collect any residual drip
Operating Speed 250 – 300 cartons per hour for 20 kg cartons
Scale accuracy - Scale display accuracy +/- 10 grams
Electrical supply - 415 VAC (2 to 5KVA)
Air supply - 6 bars at 0.5 cu m/min
Ambient Temperature -5 deg °C to +40 deg °C
Operating Humidity - Less than 85% RH (non-condensing)
Cabinet - All Electronic, pneumatic and weighing station are neatly enclosed
Note: Specifications may be changed for improvement without notice

AD2M | AD4M | AD4M Special
